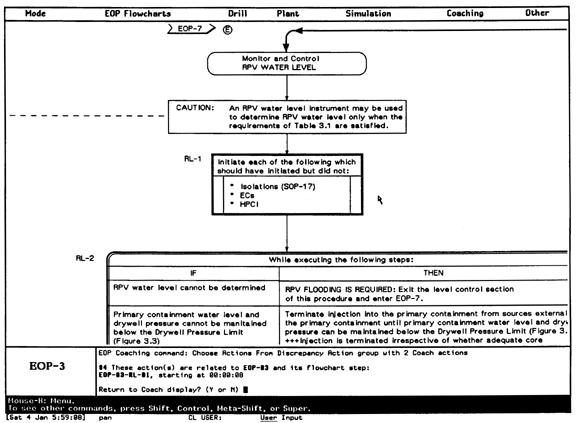

    Figure 11:

    Display resulting from operator clicking on EOP step name in explanation of EOP Coach's chosen action (Figure 10).

    The EOP-SS moves and zooms into the EOP step and blinks the step to draw operator's attention. The operator can easily move around the EOP-SS by mouse: from here a single mouse click can return to the Coach's explanations (Figures 9 and 10) or the Technical Bases (Figure 12). It is also possible to ask the EOP-SS which actions are appropriate, given current plant conditions, or which steps in the EOPs are currently generating actions.
