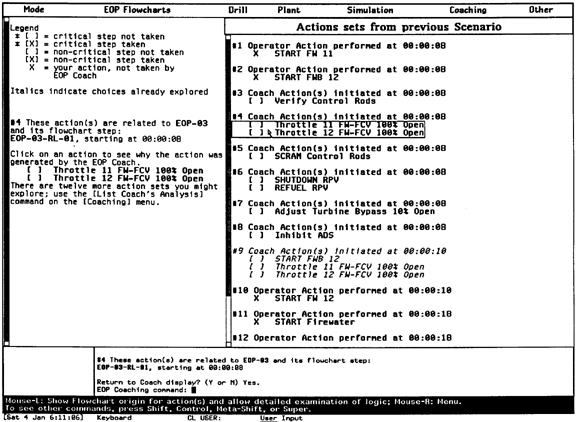

    Figure 9:

    First EOP Coach screen, showing initial comparison of operator's and Coach's actions given the same plant conditions.

    To the right of the frame a numbered list of action sets are shown, distinguishing within each set whether individual actions were performed by the operator, the Coach, or both. According to the legend, shown at the upper left of the frame, one can see the various cases that are distinguished. The mouse box around action set #4 shows that the operator has chosen to further explore the Coach's reasoning behind its choice of actions, which were not taken by the operator. The results of this single mouse click are shown at the middle left. We see that the Coach's actions were generated from a step in EOP-03, called RL-01. By then clicking on one of the two steps of the Coach in action set #4, further details are displayed on the next screen.
